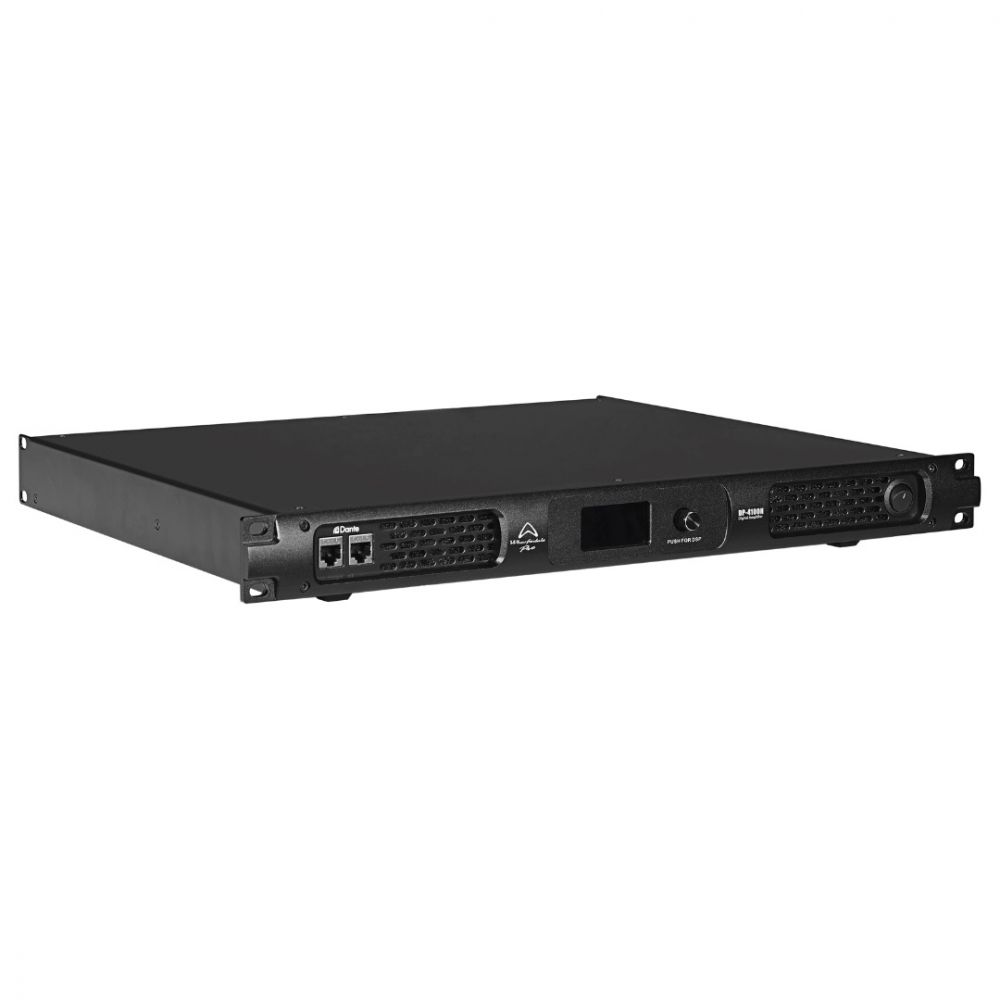

Wharfedale PRO DP-4100N Mk 2, 4-channel PA-Amplifier
NEW
Wharfedale PRO DP-4100N Mk 2, 4-channel PA-Amplifier with DSP, FIR and DANTE.
[4x1000 W (8 Ohms) / 4x1700 W (4 Ohms) / 4x2890 W (2 Ohms) / 2 x 3400 W (8 Ohm Bridged) / 2x 5780 W (4 Ohm Bridged]
Description
DP-N 4100 Mk II
Stable down to 2 Ohms and with huge Class D power, the DP-4100N is a 4-channel amplifier from our DP-N Series, combining advanced DSP control and Dante® connectivity for professional live sound and fixed installation systems.
Delivering 1000 W per channel at 8 Ω, 1700 W at 4 Ω and up to 5780 W bridged at 4 Ω, it offers exceptional output with low distortion and high efficiency. The latest DP-N models feature upgraded DSP controller software, expanded internal processing, an IPS colour display, locking XLR connectors and AES/EBU digital inputs — all enhancing system flexibility and user control.
Our DSP Controller software provides powerful functionality for both DP-F and DP-N Series amplifiers. It offers amp grouping, precise EQ and level control, and access to a comprehensive preset library. With built-in SMAART API compatibility, it integrates seamlessly with leading system analysis tools for fast, efficient tuning and optimisation.. Available to download below.
Supporting 70 V Hi-Z operation, DP-4100N is ideal for large distributed installations or multi-zone configurations. Compact, efficient and powerful, it’s built for professionals who need consistent, accurate performance with next-generation control.
DP-N Series
- Huge Class D power in a 1U rack
- 4 discrete amplification channels
- Internal DSP and computer control
- Stable down to 2 Ω. Drive multiple speakers or line array elements
- FIR filtering with 512 taps
- 90 V to 260 V AC working voltage
- Dante ™ connectivity
- 70 V compatible
TAKE CONTROL
Harnessing the power of the internal DSP
The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-N amplifier.
It is simple to monitor and edit the DP-N remotely.
REDUNDANCY
DP series amps get used in ‘mission critical’ environments. Therefore the ‘auto’ mode has been built in to deliver redundancy capability.
Set the input to ‘Auto’ and the input will change, should a problem happen with external connections.
(Use of an internal delay is advised to compensate for any switch timing and latency issues)
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP-N series are staggering.The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-N amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
DANTE ™
Using the Ultimo 4×4 chipset, DP-N amps easily join any Dante ™ ecosystem.
- Digital audio connectivity of up to 96 KHz
- Remote, network control.
Dante® is a registered trademark of Audinate Pty Ltd.
SPECIFICATIONS
| Amp Channels | 4 |
| Topology | Class D |
| Stable at 2 Ohms | Yes |
| 8Ω | 4 x 1000 W |
| 4Ω | 4 x 1700 W |
| 2Ω | 4 x 2890 W |
| 16Ω Bridged | 2 x 2000 W |
| 8Ω Bridged | 2 x 3400 W |
| 4Ω Bridged | 2 x 5780 W |
| Control | DSP Controller Software / Front Panel |
| Input Connectors | 4 x XLR Socket, Dante®, AES/EBU |
| Output Connectors | 4 x 4 Pole Speaker Connector |
| Software Control | Yes |
| Mode Switch | Software and Front Panel |
| DSP Features | DSP with FIR |
| Hi-Z | Yes |
| 70V Hi-Z | 4 x 1700 W |
| Input Gain/Sensitivity Switch | 35 dB |
| Slew Rate | >50 V / us |
| Output RMS Voltage (V) | 89.4 V |
| Maximum input Level | 21 dBu (8.7 Vrms) |
| Default Gain (Rated power, 1 kHz) (dB) | 21 dB |
| Gain (Rated Power, 1 kHz) | 35 dB |
| THD+N | Typical : 0.05% (10% Rated Power, 8 Ω) |
| Crosstalk | ≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω) |
| Amplifier Frequency Response | Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω) |
| Amplifier Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) |
| Damping Factor | ≥1000 (20 Hz-200 Hz, 8 Ω) |
| SNR | ≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω) |
| Protection | Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control |
| Main Power | 90~260 V AC,50/60 Hz |
| Included Accessory | AC Cable, User Manual |
| Unpacked - Height (mm) | 45 |
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 376 |
| Packed - Height (mm) | 125 |
| Packed - Width Front (mm) | 510 |
| Packed - Width Rear (mm) | 510 |
| Packed - Depth (mm) | 565 |
| Weight - Nett (kg) | 9.1 |
| Weight - Gross (kg) | 10.6 |
