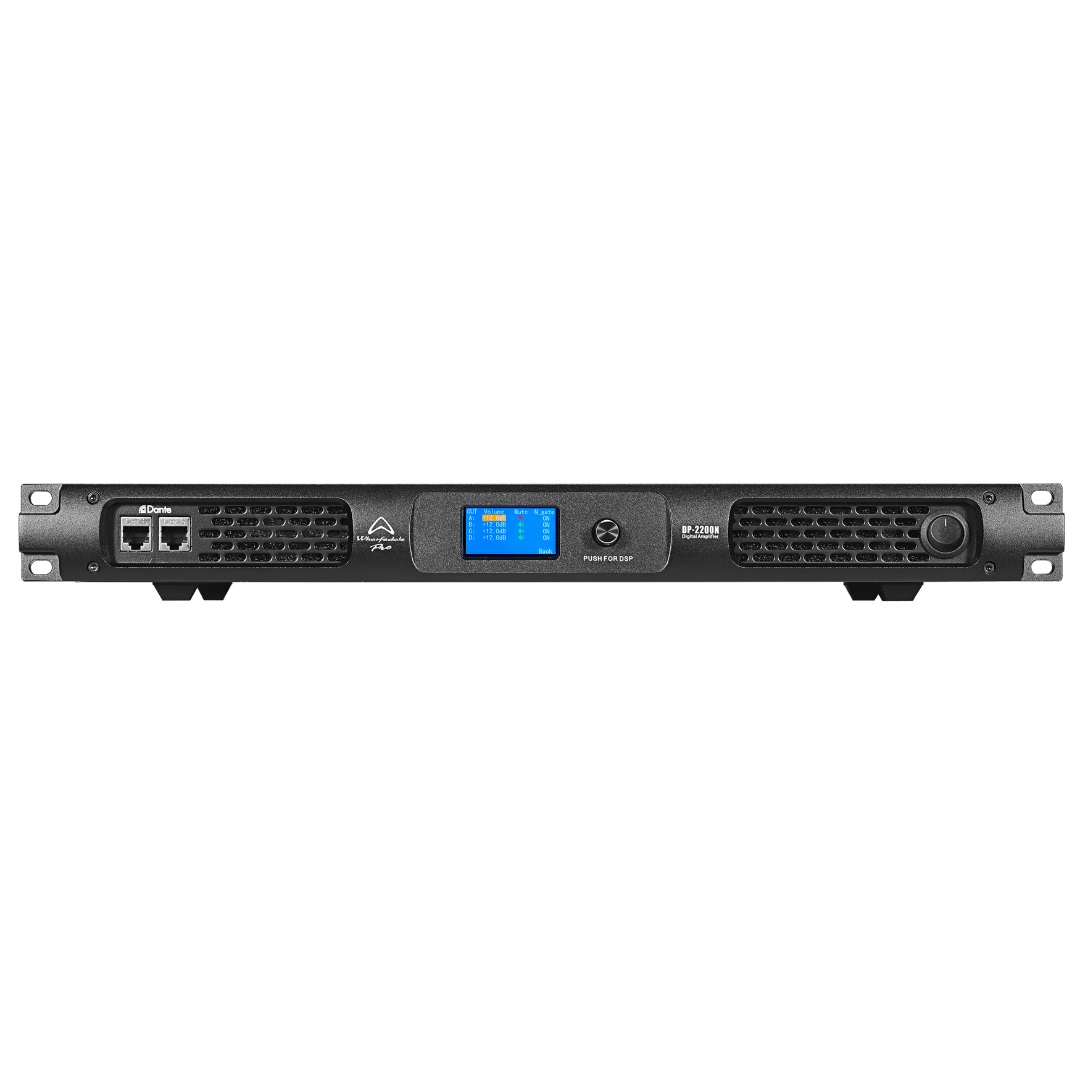

Wharfedale PRO DP-2200N Mk 2, 2-channel PA-Amplifier
NEW
Wharfedale PRO DP-2200N Mk 2, 2-channel PA-Amplifier with DSP, FIR and DANTE.
[2x2000 W (8 Ohms) / 2x3400 W (4 Ohms) / 2x4760 W (2 Ohms) / 1 x 6800 W (8 Ohm Bridged) / 1 x 9520 W (4 Ohm Bridged)]
Description
DP-2200N Mk 2
Stable down to 2 Ohms and with huge Class D power, the DP-2200N is a 2-channel amplifier from our DP-N Series, combining advanced DSP control and Dante® connectivity for professional live sound and fixed installation systems.
Delivering 2000 W per channel at 8 Ω, 3400 W at 4 Ω, and up to 9520 W bridged at 4 Ω, it provides exceptional headroom and stability across demanding applications. The DP-N Series introduces major upgrades including an IPS colour display, updated DSP controller software with expanded internal functions, locking XLR connectors and AES/EBU digital inputs — giving engineers precise control and flexible signal routing.
Our DSP Controller software provides powerful functionality for both DP-F and DP-N Series amplifiers. It offers amp grouping, precise EQ and level control, and access to a comprehensive preset library. With built-in SMAART API compatibility, it integrates seamlessly with leading system analysis tools for fast, efficient tuning and optimisation.. Available to download below.
Supporting both 70 V and 100 V Hi-Z operation, DP-2200N integrates seamlessly into large distributed systems. Designed for reliability, efficiency and clarity, it’s a powerhouse amplifier that delivers next-generation control and performance in a robust, touring-ready format.
DP-N Series
- Huge Class D power in a 1U rack
- 4 discrete amplification channels
- Internal DSP and computer control
- Stable down to 2 Ω. Drive multiple speakers or line array elements
- FIR filtering with 512 taps
- 90 V to 260 V AC working voltage
- Dante ™ connectivity
- 70 V compatible
TAKE CONTROL
Harnessing the power of the internal DSP
The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-N amplifier.
It is simple to monitor and edit the DP-N remotely.
REDUNDANCY
DP series amps get used in ‘mission critical’ environments. Therefore the ‘auto’ mode has been built in to deliver redundancy capability.
Set the input to ‘Auto’ and the input will change, should a problem happen with external connections.
(Use of an internal delay is advised to compensate for any switch timing and latency issues)
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP-N series are staggering.The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-N amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
DANTE ™
Using the Ultimo 4×4 chipset, DP-N amps easily join any Dante ™ ecosystem.
- Digital audio connectivity of up to 96 KHz
- Remote, network control.
Dante® is a registered trademark of Audinate Pty Ltd.
SPECIFICATIONS
| Amp Channels | 2 |
| Topology | Class D |
| Stable at 2 Ohms | Yes |
| 8Ω | 2 x 2000 W |
| 4Ω | 2 x 3400 W |
| 2Ω | 2 x 4760 W |
| 16Ω Bridged | 1 x 4000 W |
| 8Ω Bridged | 1 x 6800 W |
| 4Ω Bridged | 1 x 9520 W |
| Control | DSP Controller Software / Front Panel |

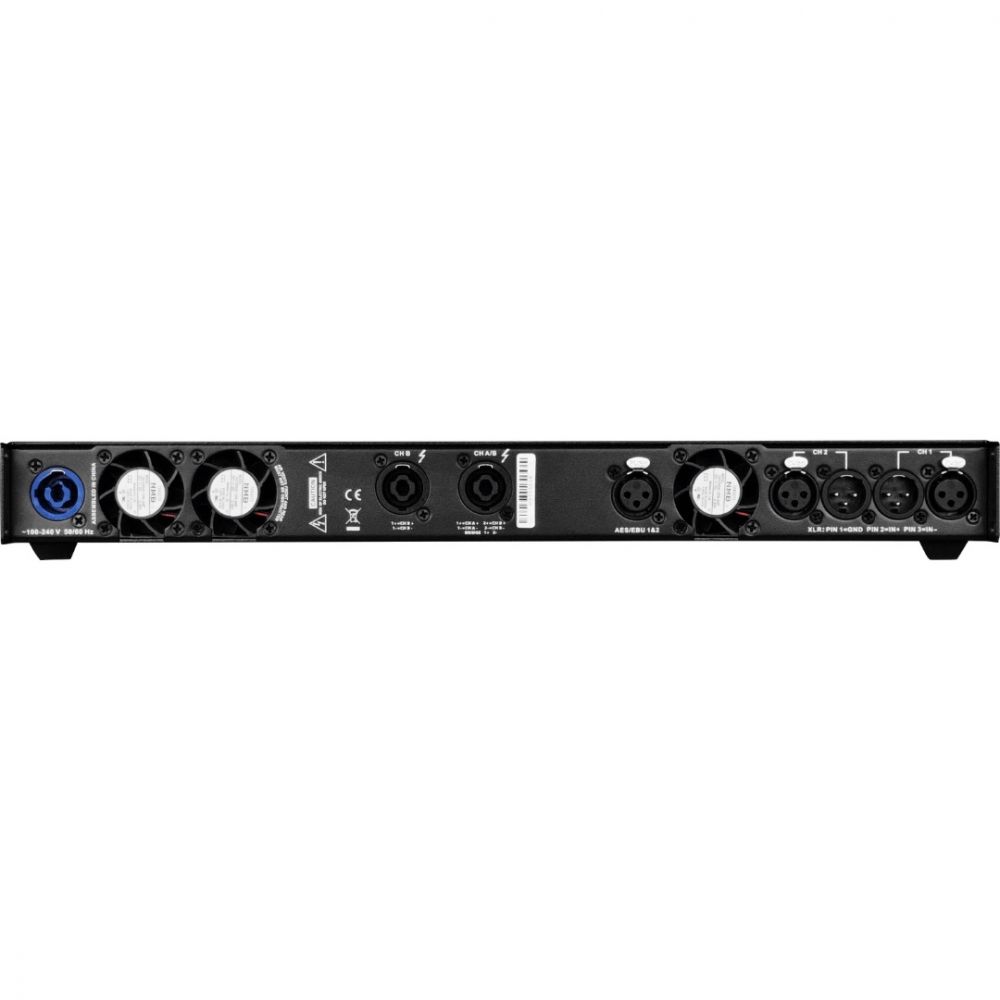

| Input Connectors | 2 x XLR Socket, Dante®, AES/EBU |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Software Control | Yes |
| Mode Switch | Software and Front Panel |
| DSP Features | DSP with FIR |
| Hi-Z | Yes |
| 100V Hi-Z | 2 x 3400 W |
| 70V Hi-Z | 2 x 2400 W |
| Input Gain/Sensitivity Switch | 35 dB |
| Slew Rate | >50 V / us |
| Output RMS Voltage (V) | 126.5 V |
| Maximum input Level | 21 dBu (8.7 Vrms) |
| Default Gain (Rated power, 1 kHz) (dB) | 35 dB |
| Gain (Rated Power, 1 kHz) | 35 dB |
| THD+N | Typical : 0.05% (10% Rated Power, 8 Ω) |
| Crosstalk | ≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω) |
| Amplifier Frequency Response | Typical :+0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω) |
| Amplifier Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) |
| Damping Factor | ≥1000 (20 Hz-200 Hz, 8 Ω) |
| SNR | ≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω) |
| Protection | Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control |
| Main Power | 90~260 V AC,50/60 Hz |
| Included Accessory | AC Cable, User Manual |
| Unpacked - Height (mm) | 45 |
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 376 |
| Packed - Height (mm) | 125 |
| Packed - Width Front (mm) | 510 |
| Packed - Width Rear (mm) | 510 |
| Packed - Depth (mm) | 565 |
| Weight - Nett (kg) | 9.3 |
| Weight - Gross (kg) | 9.5 |
