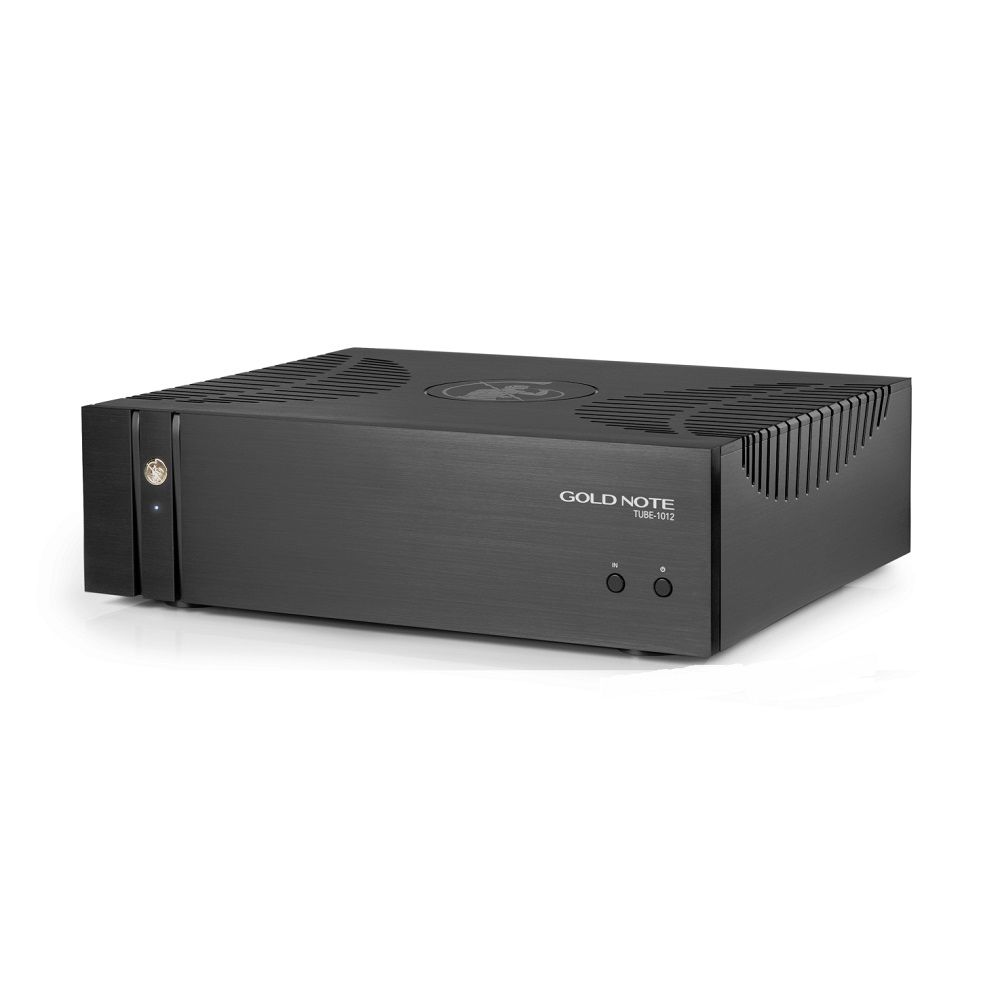

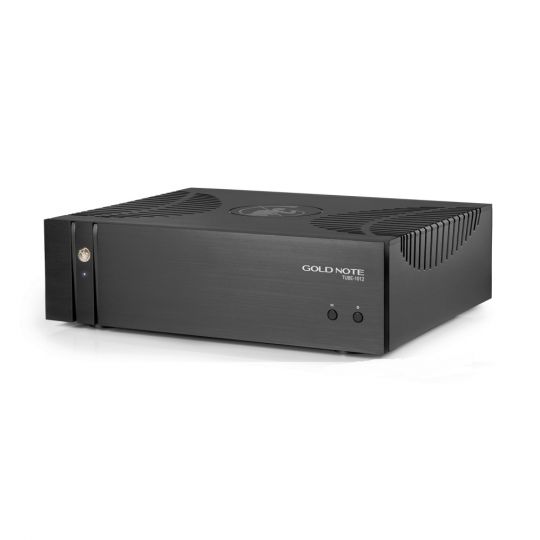

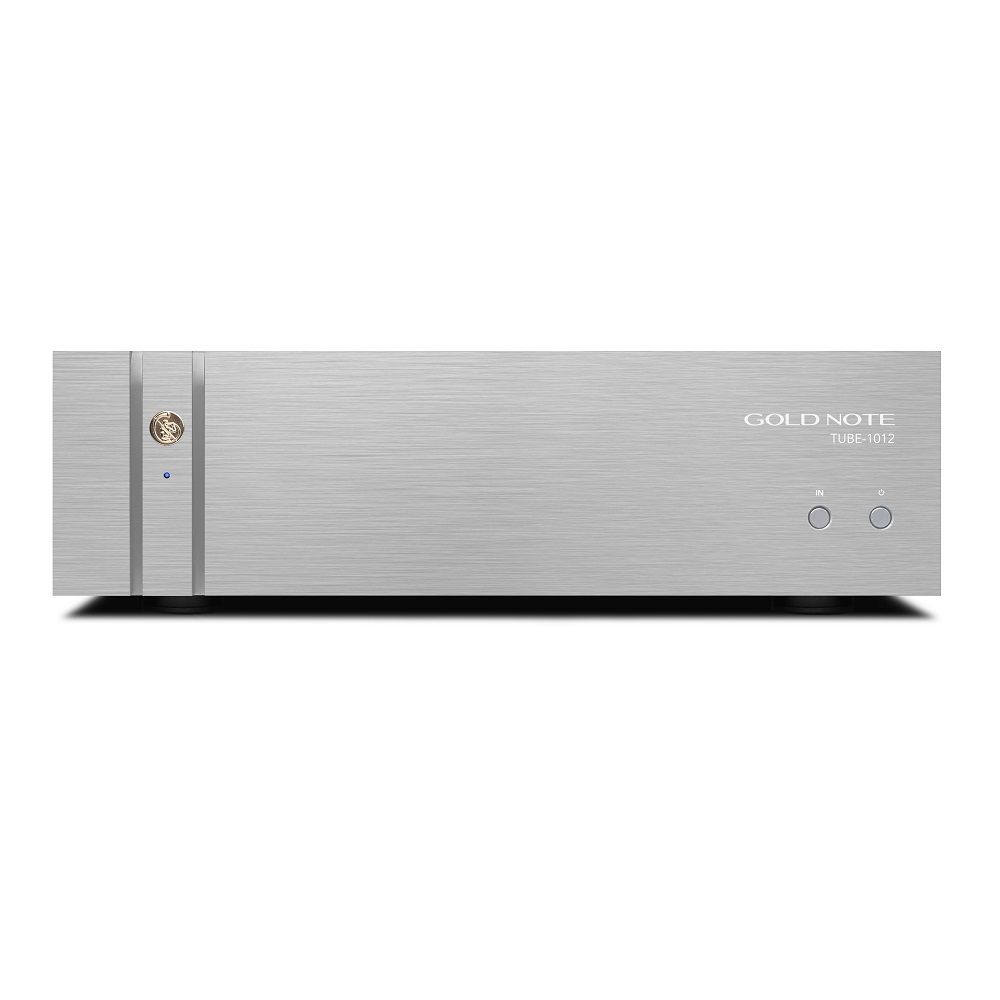

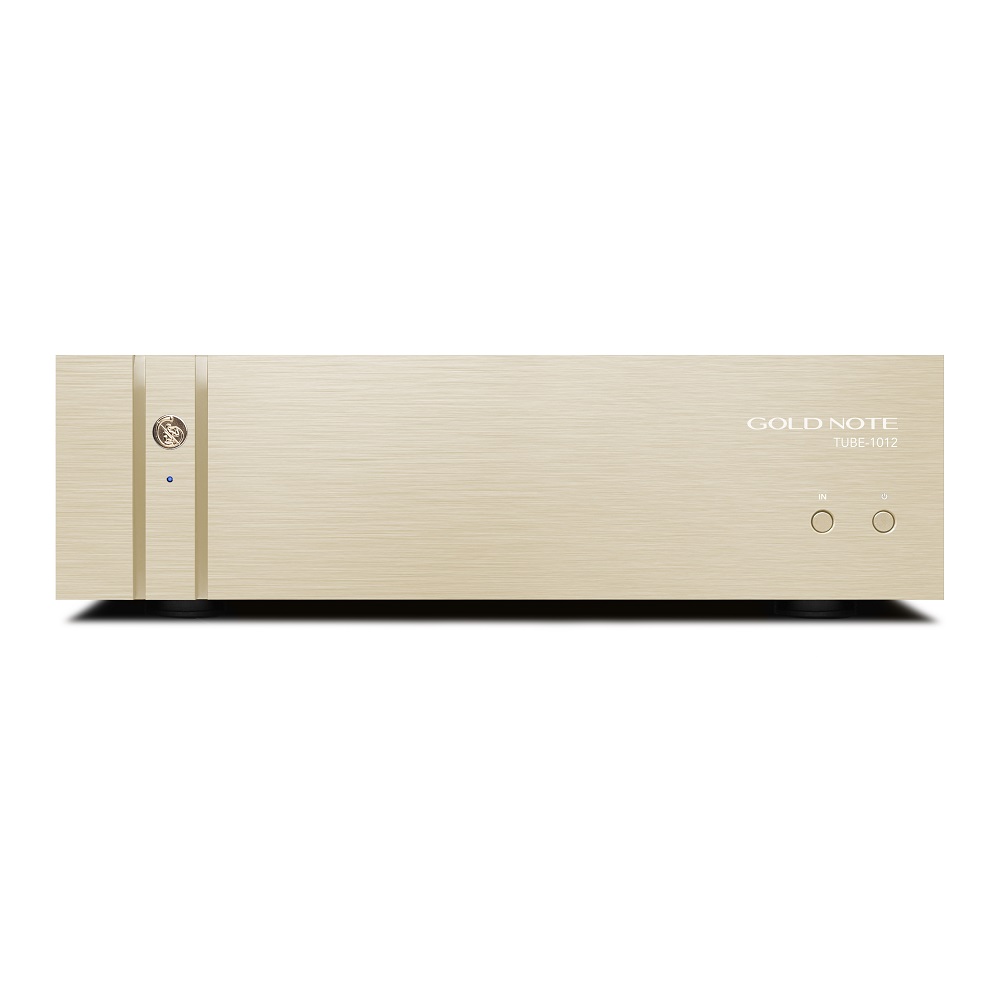

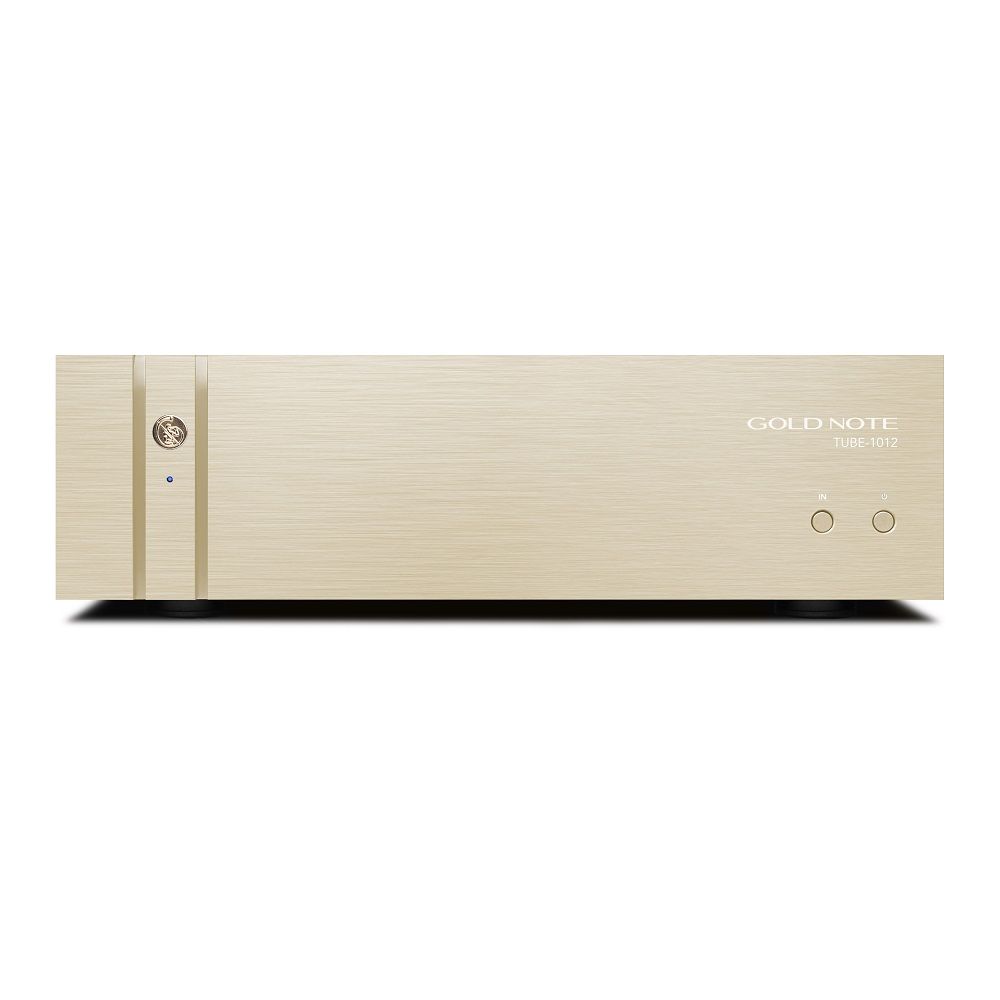

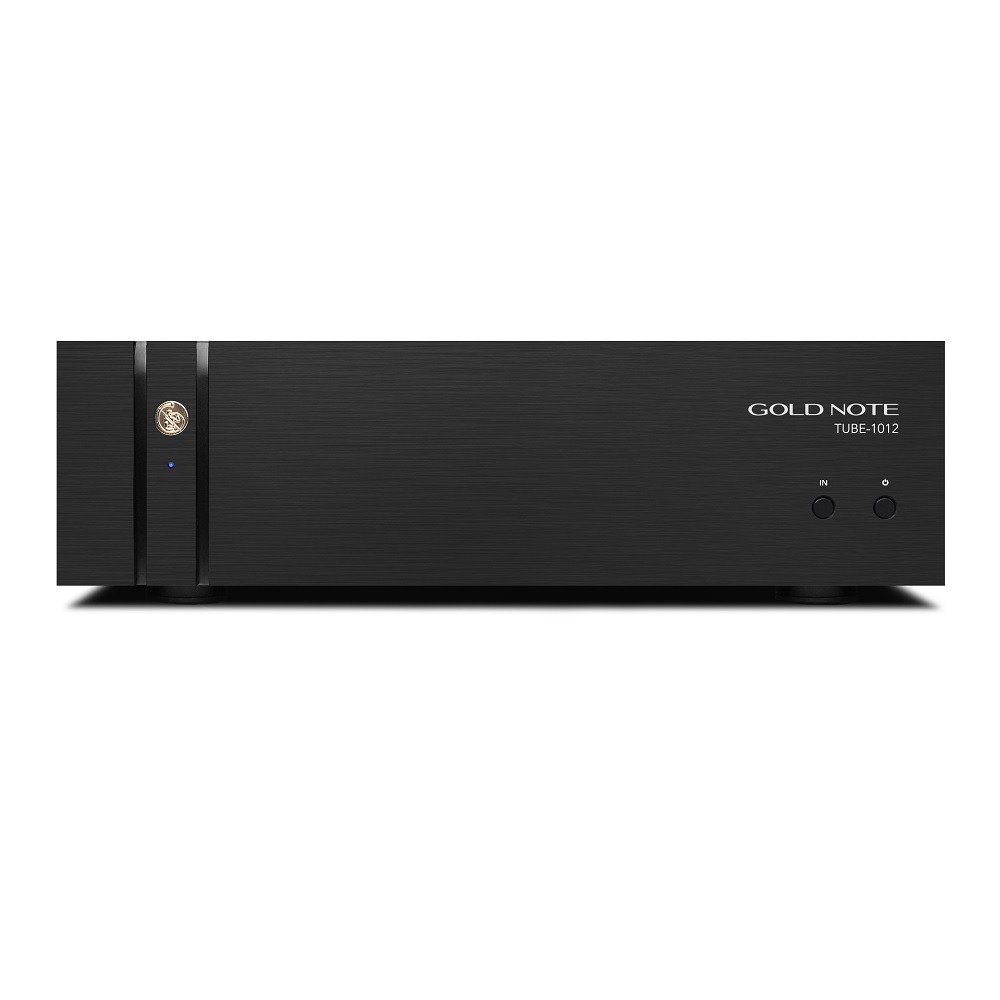

Gold Note TUBE-1012 Tube Output Stage
NEW
Gold Note TUBE-1012, High-End Class-A Tube Output Stage.
Description
To add warmth to electronics

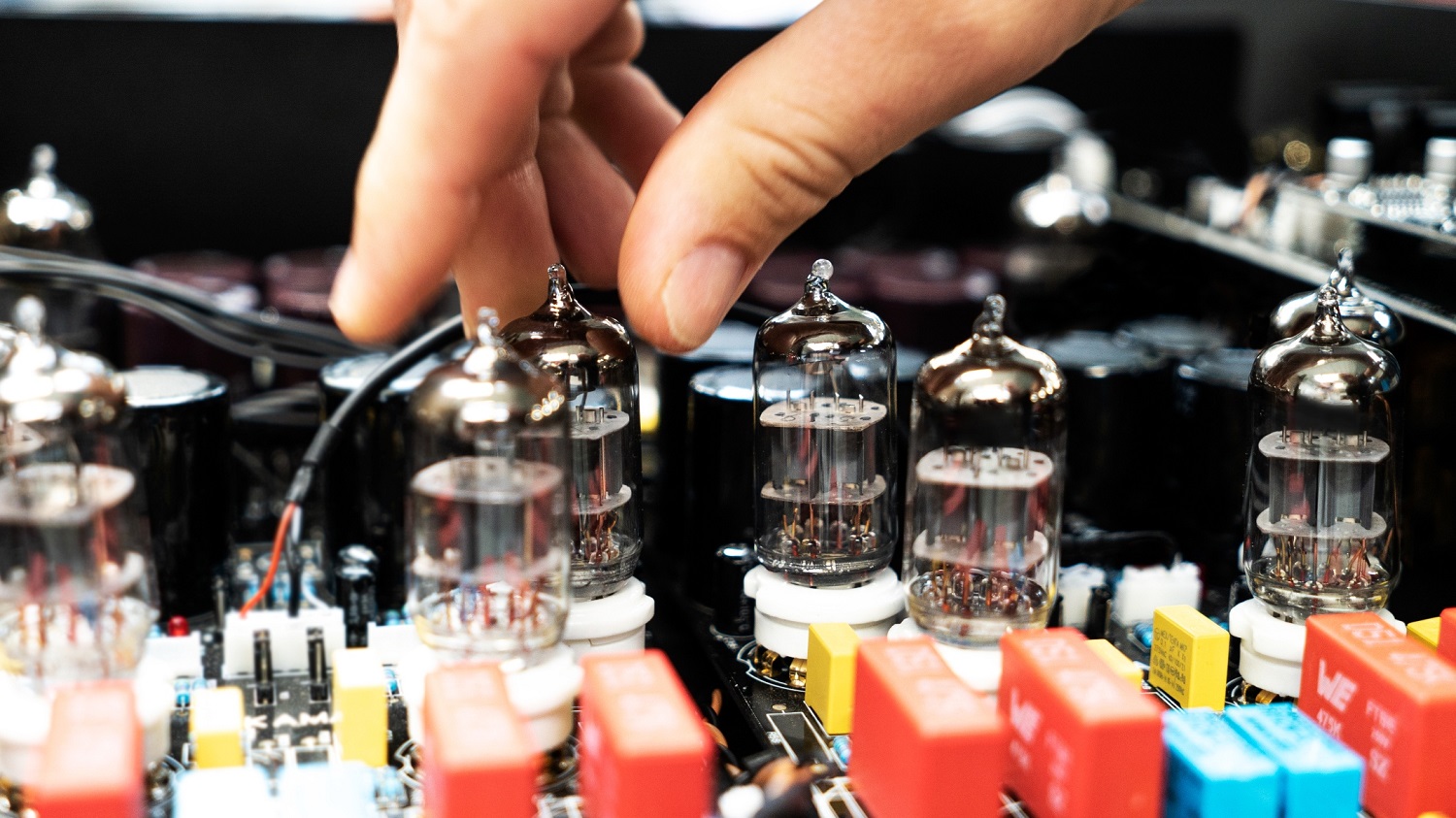

TUBE-1012 further improves the performance of Gold Note electronics, reaching a completely new level thanks to the 12-valve class A output stages. Gold Note sources and amplifications guarantee great control and definition while providing exceptional realism in recreating the musical event. But those who love the warm sound of valves and want to bring their system to its maximum performance will find TUBE-1012 the right choice. Working in perfect synergy with Gold Note electronics, you can have a wonderfully natural sound and a High-End listening experience.

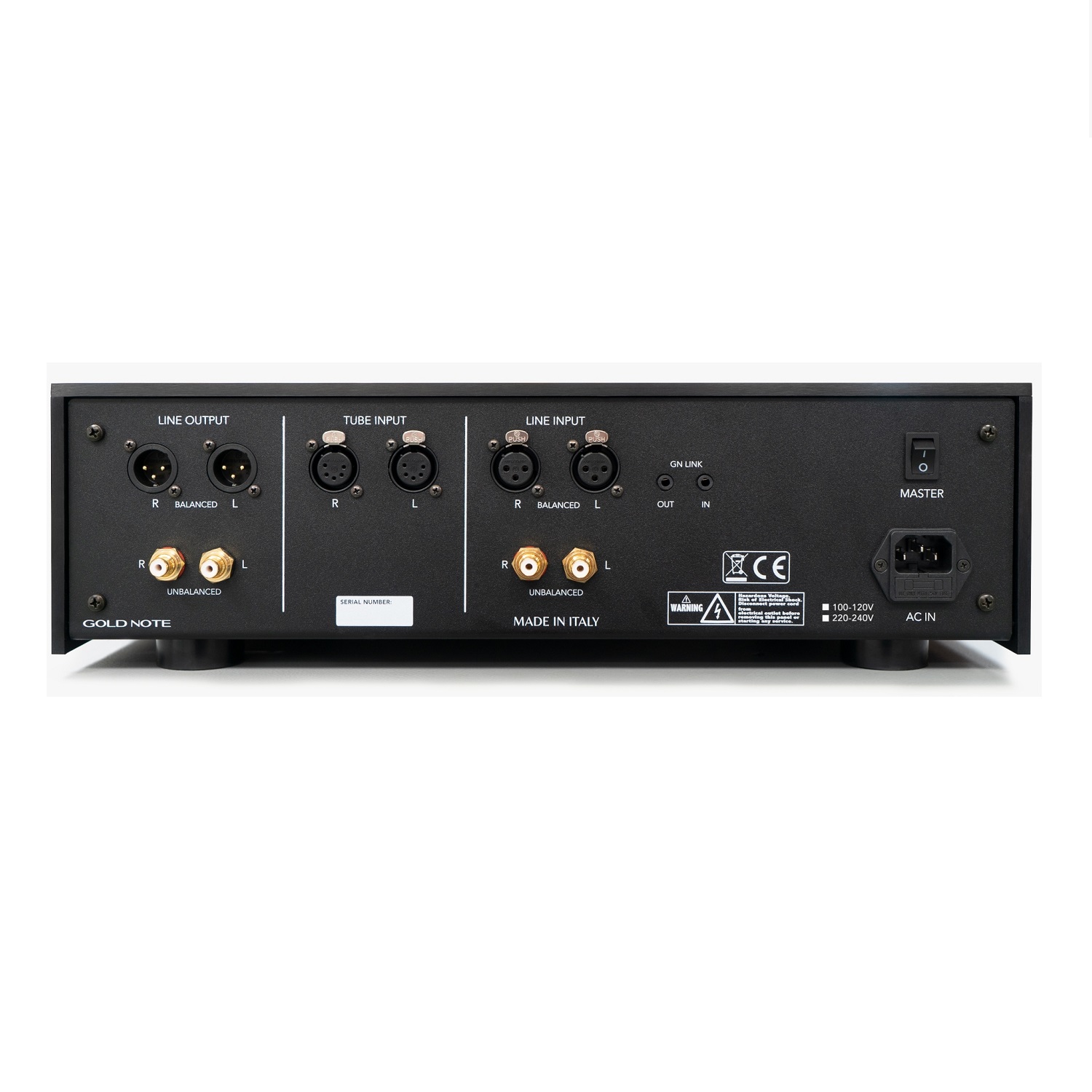

The proprietary Totem-Pole design, with six independent audio stages per Tube, ensures an ultra-wide bandwidth response and ultra-low distortion, guaranteeing a pure audio signal. Thanks to the new audio inputs on the rear panel, our valve output stages can be connected simultaneously to two sources: using the Tube input for Gold Note sources and the line input for those from other manufacturers. The input is selectable from the front panel for maximum convenience and ease of use.
Technical specifications:
TUBE-1012 and TUBE-1006: Totem-Pole Output Stage design
MAX INPUT (THD < 1%): RCA 6Vrms, XLR 12Vrms
MAX OUTPUT (THD < 1%): RCA 8Vrms, XLR 16Vrms
OUTPUT IMPEDANCE: <600Ω
GAIN: 2dB
RECOMMENDED LOAD: >10kΩ
TUBES: TUBE-1006 – 6 valves 6n1p, TUBE-1012 – 12 valves 6n1p
THD+N: 0.0028% @ 1kHz – 1.736V
S/N: >100dB @ 1kHz – 1.736V
INPUTS TUBE
1x XLR Line In
1x RCA Line In
1x Tube In (5-pole XLR for Gold Note sources only)
POWER CONSUMPTION: TUBE-1012 – 80W, TUBE-1006 – 50W
POWER SUPPLY: 100-120V or 220-240V, 50/60Hz Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
FUSE (220/240V): 2A F
FUSE (100/120V): 3,15A F
DIMENSIONS: 430mm W | 135mm H | 370mm D
WEIGHT:
TUBE-1012 – Kg. 16 net – Kg. 21 boxed
TUBE-1006 – Kg. 13,3 net – Kg. 19 boxed
MODELS
TUBE-1012
12 valves
Power consumption 80W
3x Gold Note custom transformer
TUBE-1006
6 valves
Power consumption 50W
2x Gold Note custom transformer
Customer reviews
Unfortunately there are no reviews yet. Be the first who rates this product.
For more information, please visit the home page for this product.
