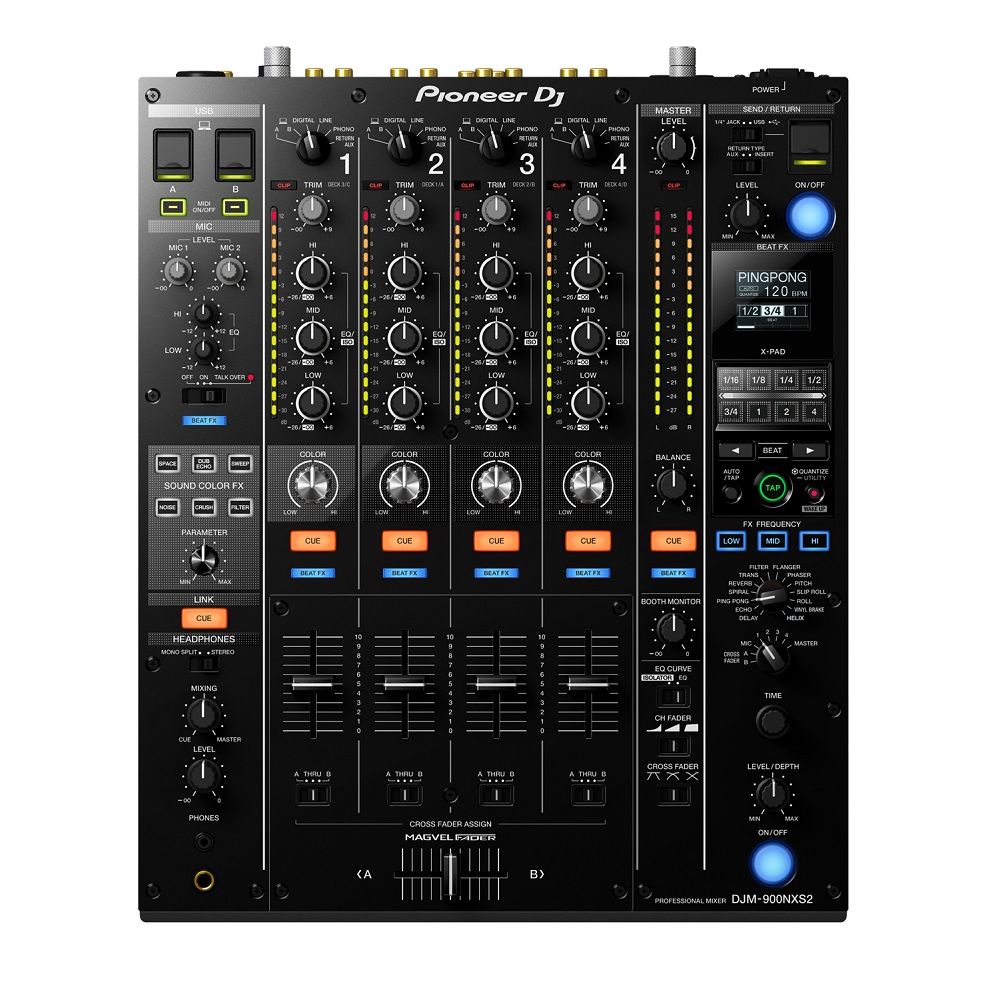

TECHNISCHE DATEN

TECHNICAL DATA

General

Power requirements .................................... AC 110 V to 240 V, 50 Hz/60 Hz
Power consumption............................................................................... 60 W
Power consumption (standby) ............................................................. 0.4 W
Main unit weight .....................................................................8.0 kg (17.6 lb)
Max. dimensions ................. 333 mm (W) × 107.9 mm (H) × 414.2 mm (D)
(13.1 in. (W) × 4.2 in. (H) × 16.3 in. (D))
Tolerable operating temperature ......... +5 °C to +35 °C (+41 °F to +95 °F)
Tolerable operating humidity ...................... 5 % to 85 % (no condensation)

Audio Section
Sampling rate ......................................................................................96 kHz
MASTER D/A converter .......................................................................32 bits
Other A/D and D/A converters ............................................................24 bits
Frequency characteristic
LINE ................................................................................. 20 Hz to 40 kHz
S/N ratio (rated output)
PHONO............................................................................................ 88 dB
LINE ............................................................................................... 105 dB
MIC1, MIC2 ..................................................................................... 79 dB
Total harmonic distortion (LINE — MASTER1) ................................0.005 %
Standard input level / Input impedance
PHONO............................................................................. –52 dBu/47 kW
LINE .................................................................................. –12 dBu/47 kW
MIC1, MIC2 ........................................................................ –52 dBu/8 kW
RETURN ............................................................................ –12 dBu/47 kW
Standard output level / Load impedance / Output impedance
MASTER1 ................................................ +6 dBu/10 kW/100 W or lower
MASTER2 ................................................ +2 dBu/10 kW/390 W or lower
REC OUT .....................................................–8 dBu/10 kW/22 W or lower
BOOTH .................................................... +6 dBu/10 kW/100 W or lower
SEND .........................................................–12 dBu/10 kW/1 kW or lower
PHONES ..................................................... +8.5 dBu/32 W/1 W or lower
Rated output level / Load impedance
MASTER1 ........................................................................+25 dBu/10 kW
MASTER2 ........................................................................+21 dBu/10 kW
Crosstalk (LINE) .................................................................................... 82 dB
Channel equalizer characteristic
HI .....................................................................–26 dB to +6 dB (30 kHz)
MID ....................................................................–26 dB to +6 dB (1 kHz)
LOW ..................................................................–26 dB to +6 dB (20 Hz)
Microphone equalizer characteristic
HI ...................................................................–12 dB to +12 dB (10 kHz)
LOW ..............................................................–12 dB to +12 dB (100 Hz)

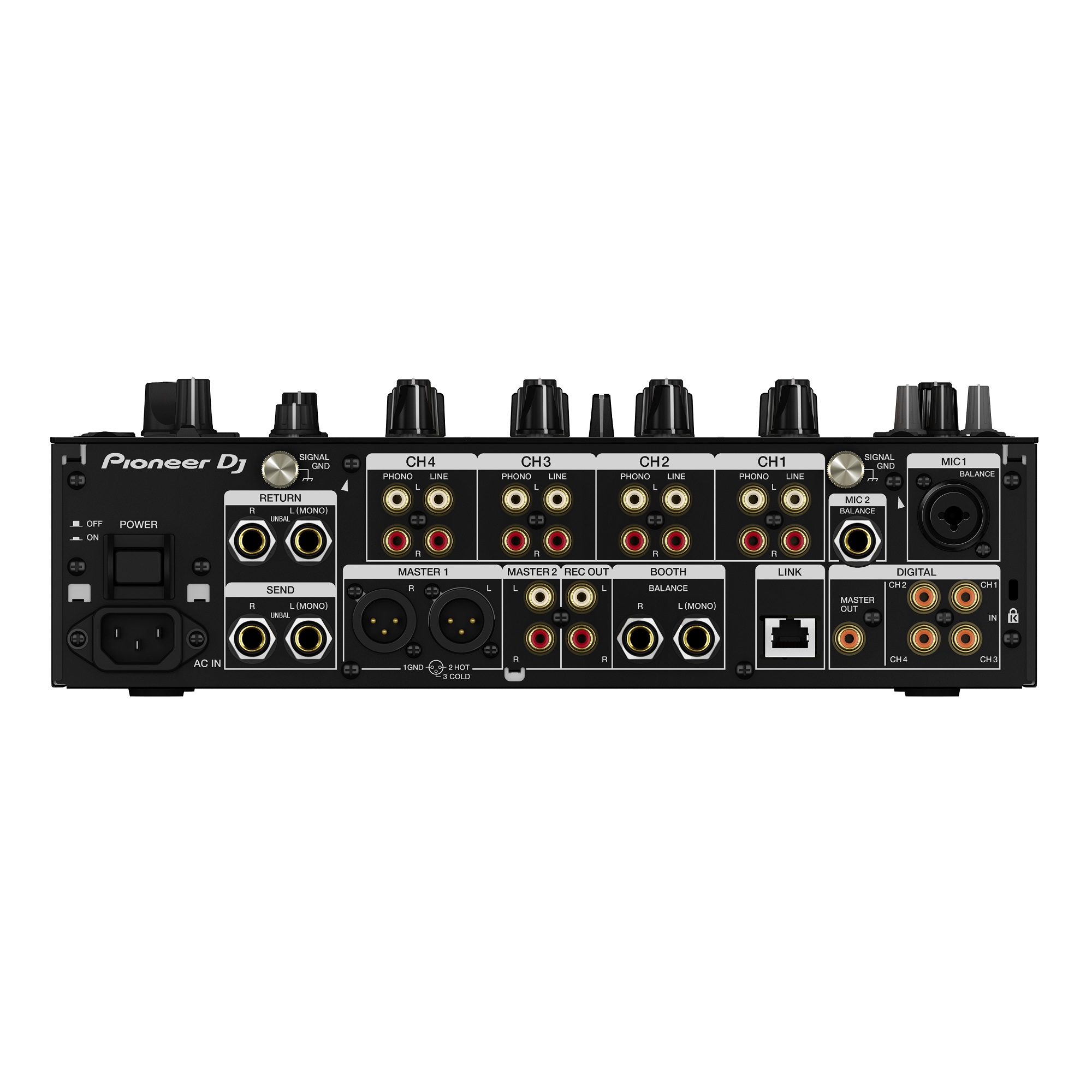

Input / Output terminals
PHONO input terminal
RCA pin jacks .................................................................................. 4 sets
LINE input terminal
RCA pin jacks .................................................................................. 4 sets
MIC1 input terminal (XLR/TRS)
XLR connector & 1/4” TRS jack ........................................................1 set
MIC2 input terminal (TRS)
1/4” TRS jack .....................................................................................1 set
RETURN Input terminals (TS)
1/4” TS jack ........................................................................................1 set
DIGITAL IN coaxial input terminal
RCA pin jacks .................................................................................. 4 sets
MASTER output terminal
XLR connector...................................................................................1 set
RCA pin jacks ....................................................................................1 set
BOOTH output terminal (TRS)
1/4” TRS jack .....................................................................................1 set
REC OUT output terminal
RCA pin jacks ....................................................................................1 set
SEND output terminal (TS)
1/4” TS jack ........................................................................................1 set
DIGITAL MASTER OUT coaxial output terminal
RCA pin jacks ....................................................................................1 set
PHONES output terminal
1/4” stereo phone jack ......................................................................1 set
3.5 mm stereo mini jack ...................................................................1 set

USB terminal
Type A ................................................................................................1 set
Power supply...5 V/2.1 A or less
B type ............................................................................................... 2 sets

LINK terminal
LAN terminal (100Base-TX) ..............................................................1 set
