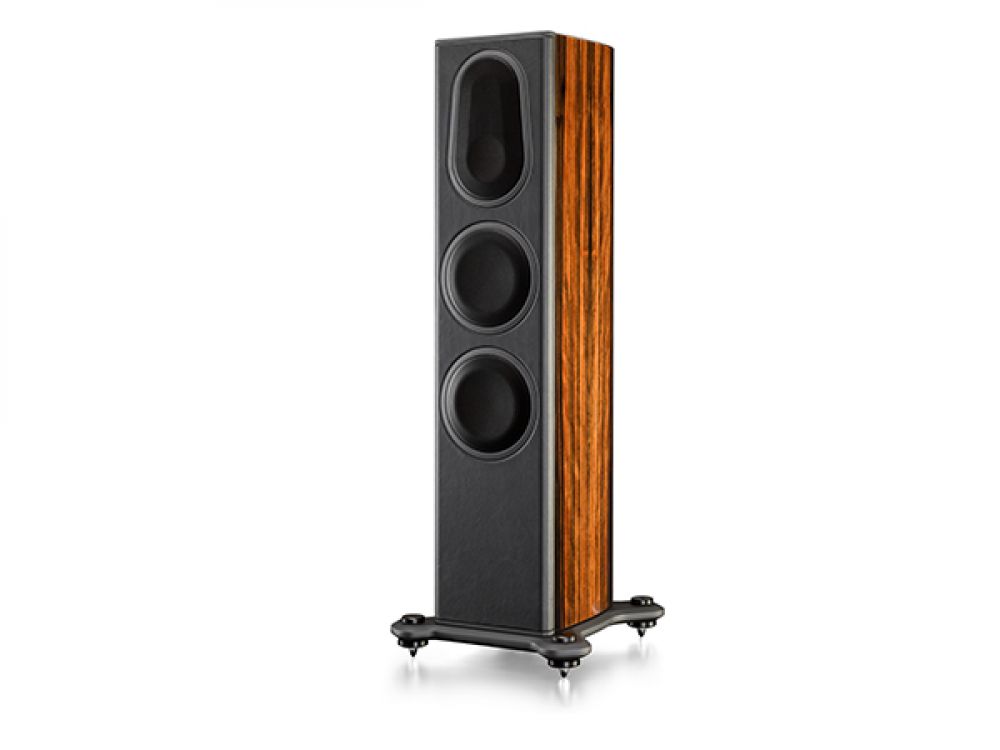

Monitor Audio PL200 II Loudspeakers
MONITOR AUDIO PL200 II, 'State-of-the-Art' 3-way Floorstanding Loudspeakers [Platinum Series].
[Finishes: Piano Black Laquer, Ebony Real Wood Veneer]
[Price per Pair]
Description
Such is the quality of Platinum II’s engineering that the character of the sound remains powerfully consistent and expressive, but with the addition of a second 6.5” RDT II driver, the PL200 II’s bass has more weight, while its dedicated 4" RDT II midrange driver brings further definition to vocals and strings.
Through the PL200 II, subtle textures are more vividly described and every note rendered with greater authority. It’s a factor of scale. Platinum II’s class-leading accuracy is a given, you simply need to match it with the size of your room.
This product is now available to use with home theatre design software
Features
Technology
- 2 x 6 1/2" RDT II long throw bass drivers
- 4" RDT II mid-range driver
- MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
- 2 x HiVe II ports
- Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
- Bespoke speaker terminals and footings
- Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
- Bolt through drivers: clearer sound and cleaner aesthetics
- Anti-Resonance Composite (ARC) mid-range housings and baffle components: reduced cabinet vibration, purer sound quality
- TLE (Tapered Line Enclosure) sealed internal enclosure for mid-range drivers: greater sound accuracy and reduced cabinet vibration
- Hand-upholstered front baffle: the very highest quality Inglestone leather supplied by Andrew Muirhead
- Individual driver grilles
- Finish options: Santos Rosewood or Ebony natural wood veneers with clear gloss piano lacquer, or Piano black gloss lacquer
Specifications
System Format
3 Way — 4 Driver
Frequency Response (-6 dB - IEC 268-13)
35 Hz — 100 kHz
Sensitivity (1W@1M)
90 dB
Maximum SPL
117 dBA (pair)
Nominal Impedance
4 ohms (4.0 ohms min. @ 135 Hz)
Power Handling (RMS)
250 W
Recommended Amplifier Requirements
100 — 250 W
Cabinet Design
Two HiVe II ports
Sealed mid-range TLEenclosure
Drive Unit Complement
2 x 61/2" RDT II long-throw bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer
Crossover Frequency
MF/HF: 3.9 kHz
LF/MF: 750 Hz
External Dimensions (Including Plinth & Terminals) (H x W x D))
1015.4 x 380.22 x 407.87 mm (40 x 15 x 161/16")
External Dimensions (Including Feet and Spikes (H x W x D))
1051.7 x 380.22 x 407.87 mm (413/8 x 15 x 161/16")
Weight (each)
36.08 kg (79 lb 6 oz)
For more information, please visit the home page for this product.
