ATC EL 150A SL Tower FF, Ultra High-End Active Loudspeakers with external Dual-Mono 3-Way Active Amplifier [Special Edition].
Finishes: Black ash, Cherry and Walnut. Piano Lacquer Black or White
Baffle Cover: Black, Gray or White textile
[Price per Pair]
ATC EL 150A SL Tower FF
Features
-
ATC SM-150s Soft Dome Mid driver.
-
ATC Super Linear 375mm Bass driver.
-
Massive hand made motor assembly.
-
Wide dispersion for perfect imaging
-
Cabinet designed to eliminate edge diffraction and internal resonance.
-
Original owner, lifetime guarantee.
-
Any veneer to order.
Featured veneer: burr magnolia. -
Active version uses P6 amplifier
Specifications
Drivers :
HF 25mm Neodymium,
Mid 75mm ATC Soft Dome,
LF 375mm SL
Frequency Response (±2dB) : 60Hz-17kHz
Frequency Response (±6dB) : 25Hz-22kHz
Matched Response : ±0.5dB
Dispersion : ±80° Coherent Horizontal, ±10° Coherent Vertical
Crossover Frequencies : 380Hz and 3.5KHz
Connectors : Multi pin Limo
Cabinet Dimensions (HxWxD) : 1315x650x290mm
Weight : 82 kg kg

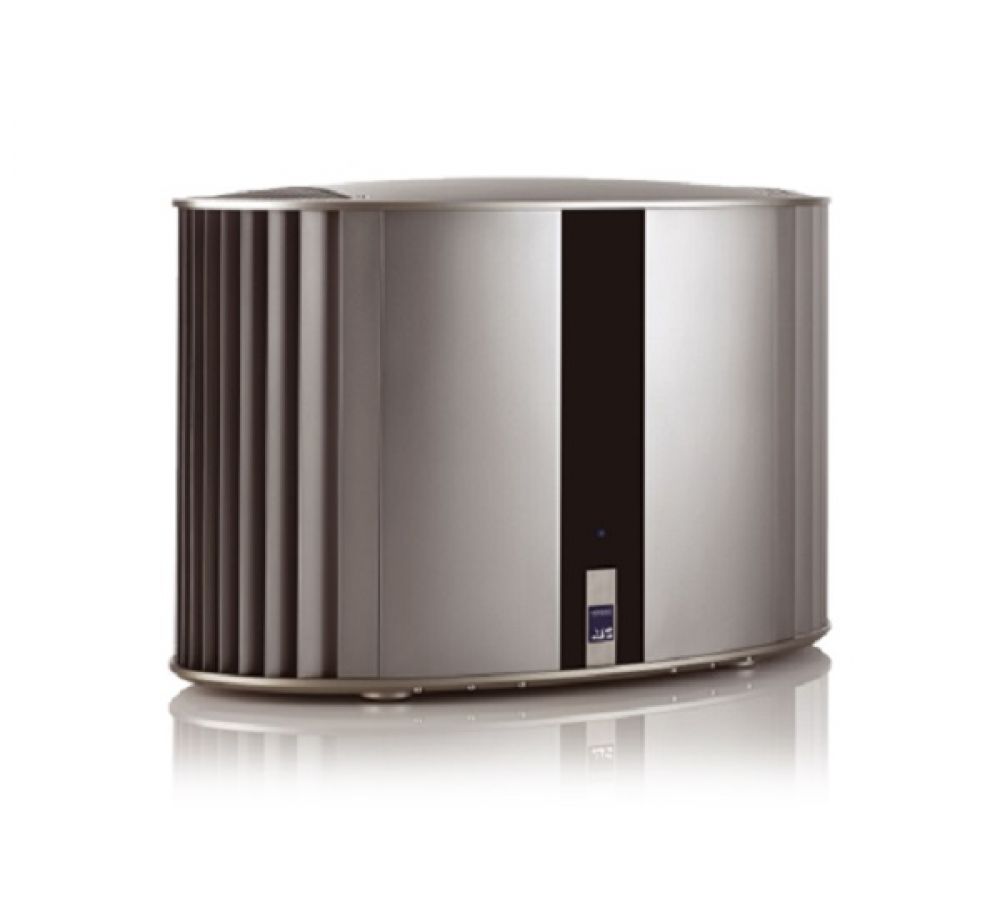

ATC P6, Dual-Mono 3-Way Active Amplifier
Features
-
Dual-Mono 3-way design (total 6 channels).
-
2 x 350W total output power (2x (200W LF, 100W MF, 50W HF)).
-
Ultra low noise discrete design throughout.
-
3-way active crossovers with phase equalization.
-
Billet and extruded aluminium chassis construction.
-
6 year warranty.
Specifications
Output Power/Stereo Ch. (RMS) :
HF: 50 Watts into 6 ohms
MF: 100 Watts into 16 ohms
LF: 200 Watts into 8 ohms
Input Sensitivity : 1V RMS
Input Impedance : 5k ohms
Frequency Response : 5Hz - 200KHz ±0.1dB (ignoring mid amp filters)
Signal / Noise Ratio : Better than 105dB
TDH : Better than 90dB/0.0032%
Power Requirements : Voltage: 110, 115, 230
Frequency: 50/60Hz (region dependent, factory set)
Dimensions (HxWxD): 427x634x318mm
Weight : 50.5kg/111.1lbs
